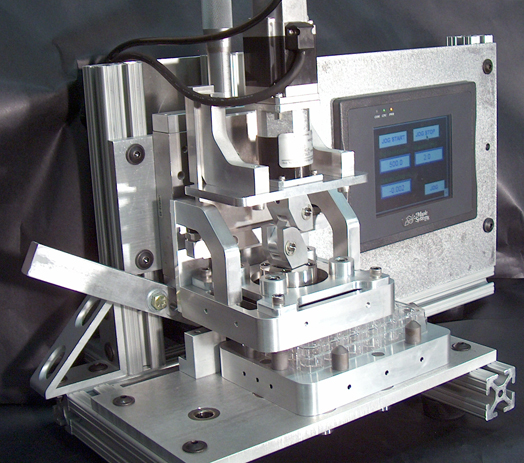

Automated Tissue Homogenization System
© 2009 Fraunhofer CMI.

Versatile, scalable, and efficient processing of tissue samples

Hot Dog Sample before Homogenization

Hot Dog Sample after Homogenization

Although techniques existed for tissue homogenization, few options were available for processing large sample arrays in parallel. Standard techniques required skilled users, were unsuitable for solid tissue samples, or proved costly and time-intensive. To address these issues, Fraunhofer CMI developed a prototype instrument capable of quickly homogenizing an array of unique tissue samples directly in a microtiter plate. No special training was necessary to achieve uniform, repeatable results, so the process accommodated semi- or full automation. The system was easy to clean and sterilize, had configurable speed and force to control shear and to minimize heating, and was useful for a wide range of sample sizes.

The design utilized a novel linkage mechanism that both transmitted torque from the rotary motor to the pestle plate and varied the the orbital radius of the pestles. The multi-function linkage prevented sample smearing against the microplate walls and reduced the risk of dripping and cross-contamination. By eliminating the need for an independent actuator to control the orbit radius, the machine's complexity and cost were decreased.

  • Designed technique to rapidly homogenize samples in a microtiter plate
  • Required no special training to achieve uniform, repeatable results
  • Controlled shear and heating by adjusting motor speed and force
  • Created multi-function linkage to transmit torque from rotary motor to pestle plate and to vary pestle orbital radius
  • Accommodated wide range of sample sizes and consistencies
  • Achieved low-cost scalability and compatability with downstream biological analysis
