Crestron TPS-4L Control Panel

Quick Start Operating Instructions

1) TURN ON THE MEDIA SYSTEM

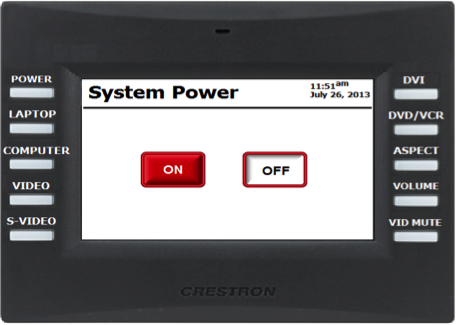

  1. Press the POWER button, then ON.
    tps-4l-1
  2. System warm-up progress bar will appear.
  3. Lower the manual projection screen.

2) SELECT A SOURCE

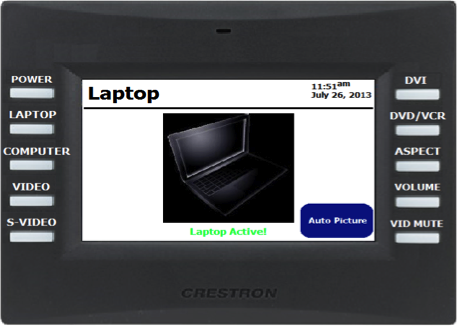

  1. Press a source button (Laptop/DVD/VCR/DVI, etc.).
  2. Connect laptop or insert necessary media (DVD/VHS, etc.).
  3. If using a laptop, be sure to choose Laptop (Wall) VGA, Computer (Rack) VGA, or DVI depending on how you connected.
    tps-4l-2

VGA cables can be found in the rack drawer located in the media closet.

3) ADJUST VOLUME

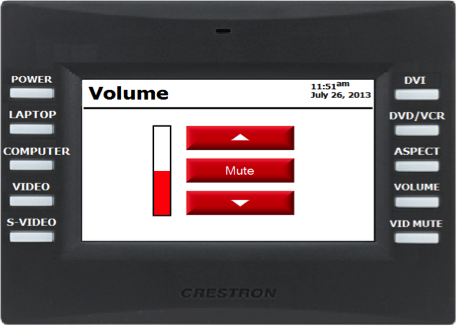

  1. Press VOLUME button, then use ARROWS up/down.
  2. Be sure that MUTE is not highlighted.
    tps-4l-3

This controls volume from ALL sources. Remember to check volume on your laptop.

4) TURN OFF THE SYSTEM AFTER USE

  1. Press the POWER button, then OFF.
  2. Status bar will progress while system cools down.
  3. Return the projection screen to the raised position.

During this 90-second cool-down process, system restart cannot occur.

5) QUESTIONS OR EQUIPMENT PROBLEMS?

  • For immediate assistance, please call CTS at (617) 353-3227
  • Send an email to classrooms@bu.edu to report equipment issues.
