Crestron TPMC-4SM Control Panel (2nd Generation)

Quick Start Operating Instructions

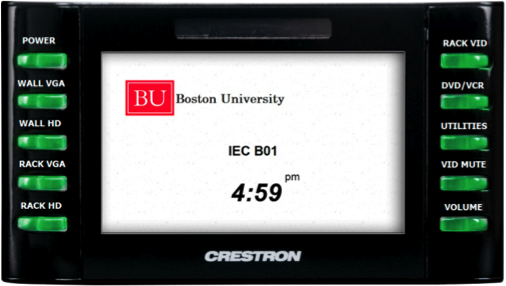

1) TURN ON THE MEDIA SYSTEM:

  1. Press the POWER button, then ON.
    2nd-gen-2
  2. Status bar will progress while system warms up.
  3. Lower the projection screen (may be manual or electric).

2) SELECT A SOURCE

  1. Press a source button (WALL VGA/DVD/VCR, etc.).
  2. Connect laptop or insert necessary media (DVD/VHS, etc.).
  3. If using a laptop, be sure to choose  (Wall or Rack) VGA or (Wall or Rack) HDMI depending on how you connected.
    2nd-gen-4

VGA cables can be found in the rack drawer located in the cabinet or black box.

3) ADJUST VOLUME

  1. Press VOLUME button, then use ARROWS up/down.
    2nd-gen-14
  2. Be sure that MUTE is not highlighted.

This controls volume from ALL sources. Remember to check volume on your laptop.

4) TURN OFF THE SYSTEM AFTER USE

  1. Press the POWER button, then OFF.
  2. Status bar will progress while system cools down
  3. Return the projection screen to the raised position

During this two-minute cool down process, system restart cannot occur.

5) QUESTIONS OR EQUIPMENT PROBLEMS?

  • For immediate assistance, please call CTS at (617) 353-3227
  • Send an email to classrooms@bu.edu to report equipment issues
  • Press the POWER button on the top left of the control panel.

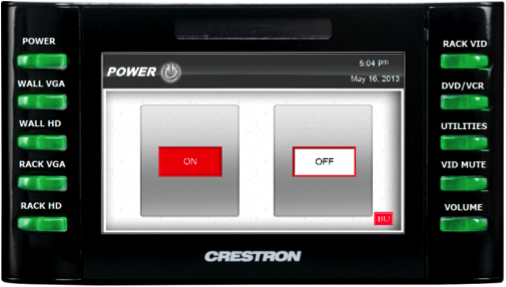

  • The System Power submenu will appear.  Press the ON button on the touchscreen.  ALWAYS turn the system on at the panel — you will never need to touch the actual projector.
    2nd-gen-2

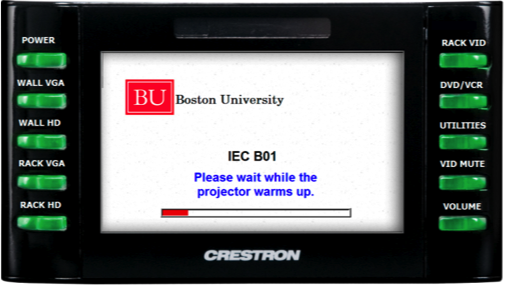

  • A progress bar will appear with the message “Please wait while the projector warms up”.  The process takes about 40 – 60 seconds, depending on the system.  No other actions can be performed while the projector is warming up.
    2nd-gen-3
  • Lower the projection screen at the front of the room.
    The screen may be manual or electric.
  • When the system has warmed up, the following message will display on the panel:  “System is ready.  Please plug your source at the right location!”

    • DISPLAY LAPTOP

    If you are using a Mac laptop, you will need to provide your own VGA adapter, as Classroom Technology Services does not provide Mac adapters.

    Also, If your laptop does not display, press the  APA (Auto Pixel Adjust) button in the bottom left of the touchscreen after source selection. By pressing this button, the projector will optimally align the image pixels without requiring laptop adjustments such as changing the image resolution.

    WALL INPUT — VGA

    1. Remove the 15pin VGA cable from the rack drawer located in the  cabinet or media box.
    2. Connect your laptop, using the cable, into the PC IN input jack on the wall.  If using Computer Audio, please also connect the 1/8” stereo mini connector to both your laptop and the wall jack.
    3. Push the WALL VGA button near the top left of the control panel.
    4. Turn on your laptop
    5. After a few seconds, the system will detect your connection and display the Horizontal & Vertical Resolution.

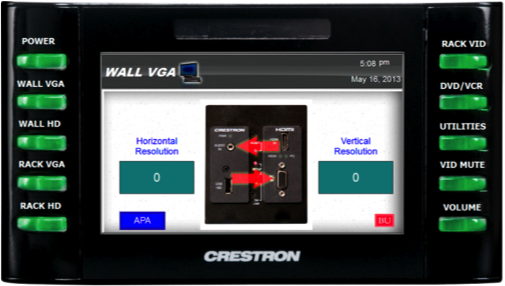

      2nd-gen-4

    RACK INPUT — VGA

    1. Remove the 15pin VGA cable from the rack drawer located in the  cabinet or media box.
    2. Connect your laptop, using the cable, into the COMPUTER VIDEO input jack in the equipment rack in the cabinet or media box.  If using Computer Audio, please also connect the 1/8” stereo mini connector to both your laptop and the wall jack.
    3. Push the RACK VGA button on the left side of the control panel.
    4. Turn on your laptop
    5. After a few seconds, the system will detect your connection and display the Horizontal & Vertical Resolution.
      2nd-gen-5

    WALL INPUT — HDMI

    1. Remove the HDMI cable from the rack drawer located in the  cabinet or media box.
      If there is no HDMI cable in the drawer, please contact CTS at (617) 353-3227 and we will bring you a cable.
    2. Connect your laptop, using the cable, into the HDMI IN input jack on the wall.
    3. Push the WALL HD button on the left side of the control panel.
    4. Turn on your laptop.
    5. After a few seconds, the system will detect your connection and display the Horizontal & Vertical Resolution.

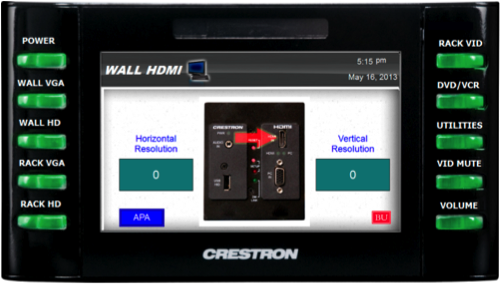

      2nd-gen-6

    RACK INPUT — HDMI

    1. Remove the HDMI cable from the rack drawer located in the  cabinet or media box.
      If there is no HDMI cable in the drawer, please contact CTS at (617) 353-3227 and we will bring you a cable.
    2. Connect your laptop, using the cable, to the HDMI IN input jack in the equipment rack in the cabinet or media box.
    3. Push the RACK HD button on the bottom left of the control panel.
    4. Turn on your laptop.
    5. After a few seconds, the system will detect your connection and display the Horizontal & Vertical Resolution.
      2nd-gen-7

    DISPLAY DVD

    1. All rooms with this control panel are equipped with a combination VCR/DVD Player.  Insert your DVD into the Combo Player in the equipment rack, located in the cabinet or media box.

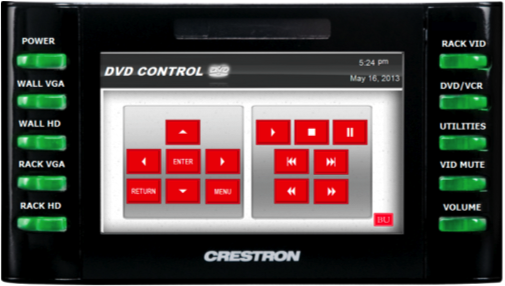

    2. Press the DVD/VCR button on the right side of the control panel.  Select the DVD option on the touchscreen.  The DVD Control  and Navigation menu will be  displayed, including options for the following: Play, Stop, Pause, Rewind, Fast Forward, Track Forward and Track Back.
      2nd-gen-9
    3. There are also Left, Right, Up and Down arrows which will allow you to navigate your DVD’s menu.  Use the RETURN button to return to the previous screen, or the MENU button, which will bring you to the DVD’s menu.
    4. All functions of the DVD can be controlled from the DVD Control and Navigation menu, making a remote control unnecessary.
      2nd-gen-10

    DISPLAY VHS

    1. All rooms with this control panel are equipped with a combination VCR/DVD Player.  Insert your VHS tape into the Combo Player in the equipment rack, located in the cabinet or media box.
    2. Press the DVD/VCR button on the right side of the control panel.  Select the VCR option on the touchscreen.  The VCR Control menu will be  displayed, including options for the following: Play, Stop, Pause, Rewind and Fast Forward.
    3. All functions of  the VCR can be controlled from this menu, making a remote control unnecessary.
      2nd-gen-11

    DISPLAY AUXILIARY VIDEO

    Occasionally, if the built-in DVD Player or VCR in a classroom fails, portable equipment may be brought in for temporary use.

    1. Plug the equipment into the RCA inputs in the equipment rack located in the cabinet or media box.

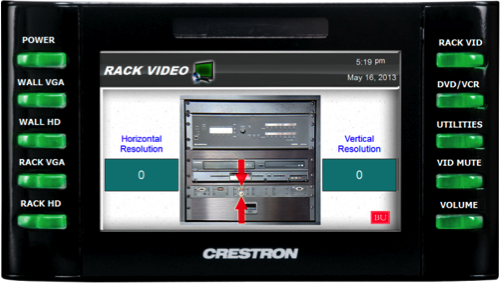

    2. Push RACK VID in the top right of the panel
      2nd-gen-8

    UTILITIES/ASPECT RATIO

    1. Press the UTILITIES button on the right side of the control to access the Aspect Ratio menu.
      • NORMAL: This option will display your laptop image as is.
      • NATIVE: This option will adjust your laptop’s resolution to the native resolution of the projector.  In most rooms with this panel, the native resolution is 1280×800.
      • FULL: This option will scale the projected image to fill the entire projection screen.  Note:  If your projection contains a lot of images, they will most likely appear skewed.  If this is the case, please switch back to NORMAL projection mode.

      2nd-gen-12

    VOLUME CONTROL

    The levels of both Computer Audio, as well as the audio of your projected DVD or VHS media, are controlled from the Volume menu.

    1. Press the VOLUME button near the bottom right of the control panel.
    2. Use the UP and DOWN arrows to raise and lower the volume.  Press the MUTE button to silence the audio; press it again, or either the UP or DOWN arrow, to  restore the audio.
      2nd-gen-14

    When the volume is muted, the MUTE button becomes white and the volume meter to the left disappears.

    VIDEO MUTE

    It is possible to temporarily shut off the projected image without turning off the projection system.

    1. Press the VID MUTE button on the bottom right of the control panel.2nd-gen-14-2
    2. Press the MUTE ON button to enable the Video Mute.
      2nd-gen-15
    3. Press the MUTE OFF button to restore the image.

    When the Video Mute is active, the “Picture muted!!” message will flash on the touchscreen.

    SHUT DOWN

    1. Press the POWER button on the top left of the control panel.
    2. The System Power submenu will appear.  Press the OFF button on the touchscreen.  ALWAYS turn the system on at the panel — you will never need to touch the actual projector.

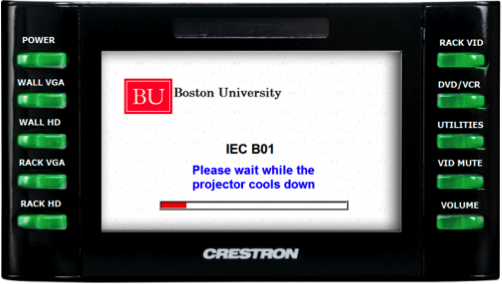

    3. A progress bar will appear with the message “Please wait while the system shuts down”.  The shutdown process takes about 2 minutes.
      2nd-gen-16
      You will not be able to restart the system until the projector cools down.
    4. Return the projection screen to the raised position.  Return the cable to the drawer.
