SHA-110: Crestron TPS-4L Control Panel

Quick Start Operating Instructions

1) TURN ON THE MEDIA SYSTEM

  1. Press the POWER button, then ON
    SHA110 — Crestron TPS4L — 01 Power
  2. System warm-up progress bar will appear
  3. The electric projection screen will lower automatically

2) SELECT A SOURCE

  1. Press a source button (Laptop/Desktop/Wrl Pres, etc.)
  2. Connect laptop or insert necessary media (DVD/VHS, etc.)
  3. COMPUTERS:  Select DESKTOP to use the built-in computer.  To utilize the VGA or HDMI Cable on top of the podium with your own laptop, select the LAPTOP option.  To connect wirelessly, select WRL PRES and follow the instructions on the projection screen
  4. DVD/VCR:  Insert your DVD or VHS tape into the Combo Player in the podium rack

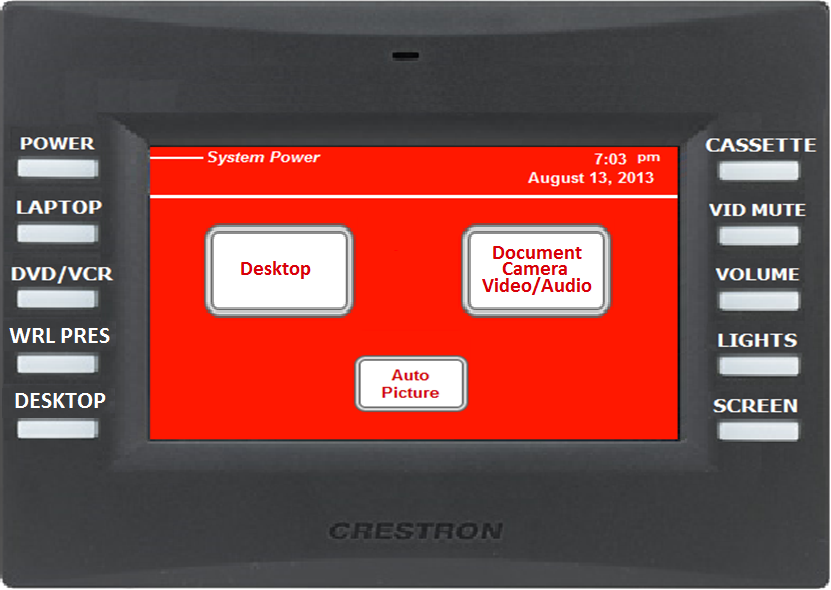

    SHA110 — Crestron TPS4L — 02 Desktop

Note: VGA, HDMI, Ethernet, and Auxiliary Video cables are located in the top of the podium

3) ADJUST VOLUME

  1. Press VOLUME button, then use ARROWS up/down.

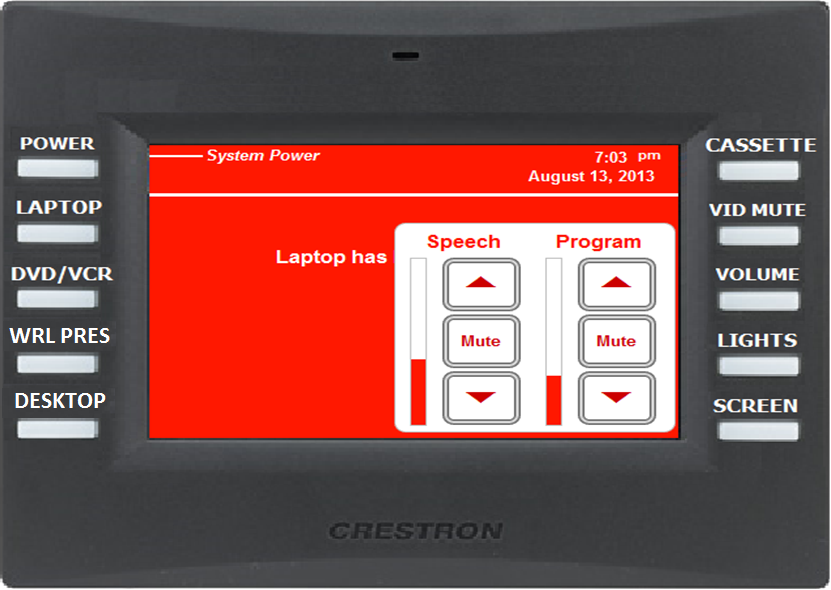

    SHA110 — Crestron TPS4L — 03 Audio Controls
  2. Be sure that MUTE is not highlighted

Note: Speech Volume controls podium and wireless microphone; Program Volume controls Computer and VHS/DVD audio.  Remember to check volume on your laptop and ensure it is not muted

4) TURN OFF THE SYSTEM AFTER USE

  1. Press the POWER button, then OFF
  2. Status bar will progress while system cools down
  3. The electric projection screen will raise automatically

Note: During this two-minute cool-down process, system restart cannot occur.

5) QUESTIONS OR EQUIPMENT PROBLEMS?

  • For immediate assistance, please call LETS at (617) 353-3227
  • Send an email to classrooms@bu.edu to report equipment issues.
